Elemento Demo - private cloud setup

In this demo, we will perform these steps:

  1. Create an Elemento Account
  2. Install Electros application
  3. Install AtomOS on a host
  4. Create a storage
  5. Create a virtual machine
  6. Interact with the virtual machine

:::info A deeper view of each tech pack can be found starting from the starter tech pack. :::

Create an Elemento Account

To get started, click the Sign Up button at the top right of our website and follow the instructions to create an account. Wait for the confirmation email and set the account password.

Remember to choose a secure password, consisting of at least eight characters, including uppercase and lowercase letters, numbers, and symbols.

If you have already an account but you forgot the password you can recover it from here.

Install Electros application

Download our app Electros for your Operating System from our website. If you prefer to use the CLI, you can download the elemento-cli via pip package manager:

# Create a virtual environment (optional)
python3 -m venv elemento-venv
source elemento-venv/bin/activate

# Installation via pip package manager
python3 -m pip install elemento-cli

During the rest of the demo we will use the desktop app, but all the steps can be performed also via the CLI tool. You can find details about the it in the Electros tech pack.

Install AtomOS on a host

AtomOS is compatible with the OS contained in this page. Be sure that the OS of your host is compatible before starting the installation.

We strongly suggest the installation of Almalinux 9.x unless you have special needs that require a debian-based distro. The demo is performed using Almalinux 9.5.

After you have installed the base OS you can follow the guide here to setup AtomOS with the new CLI.

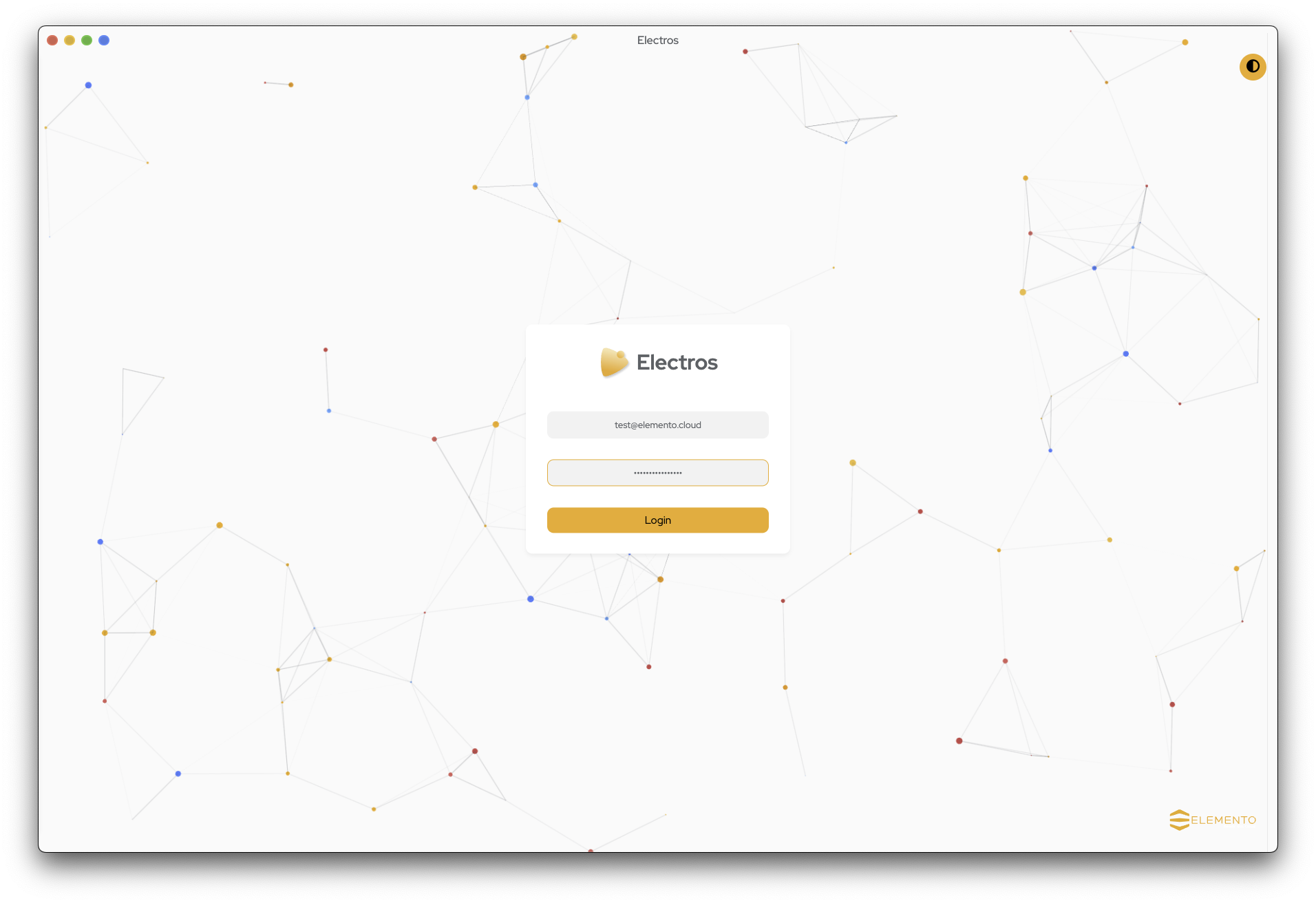

After the AtomOS installation (and a reboot of the host), open the Electros app and perform login with your Elemento's credentials.

Alt text

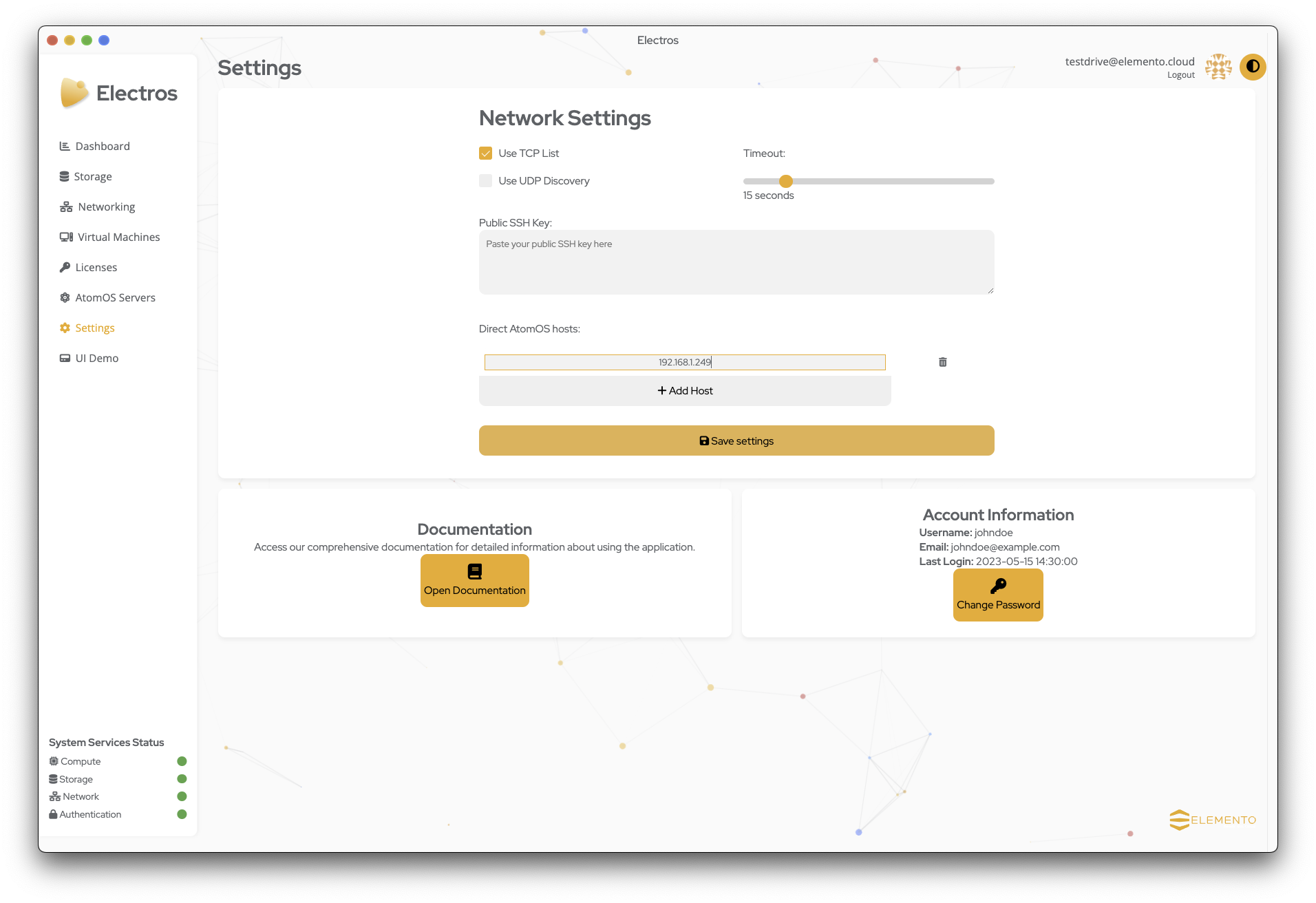

After the login you will find the dashboard page, so go to the Settings page in order to add the IP of your host.

Alt text

License activation

For the license activation take a look to the Electros tech pack. A license can be activated both via CLI and GUI!

Create a storage

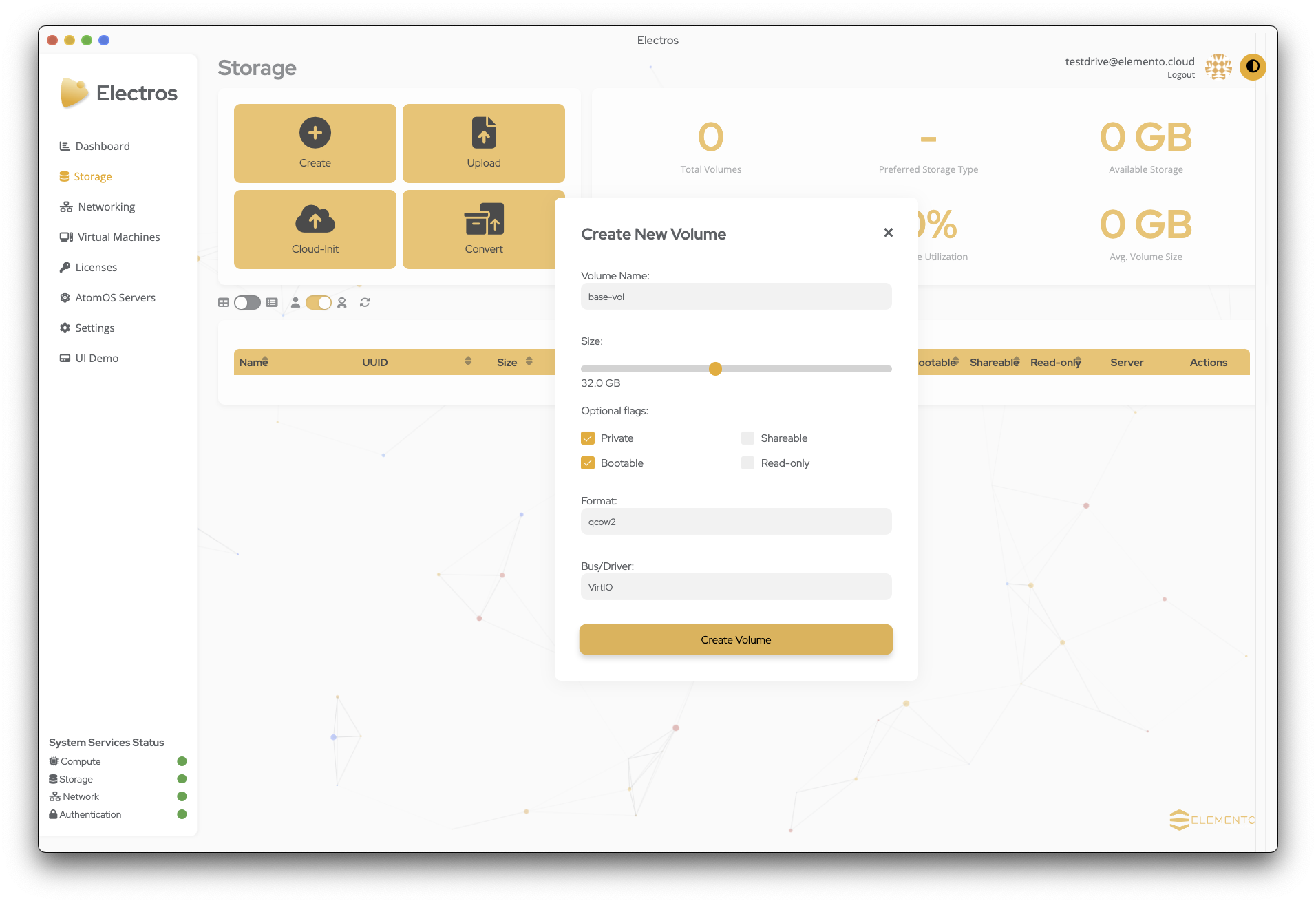

Go to the Storage section, create a storage clicking on Create button and then continue as follow: Alt text

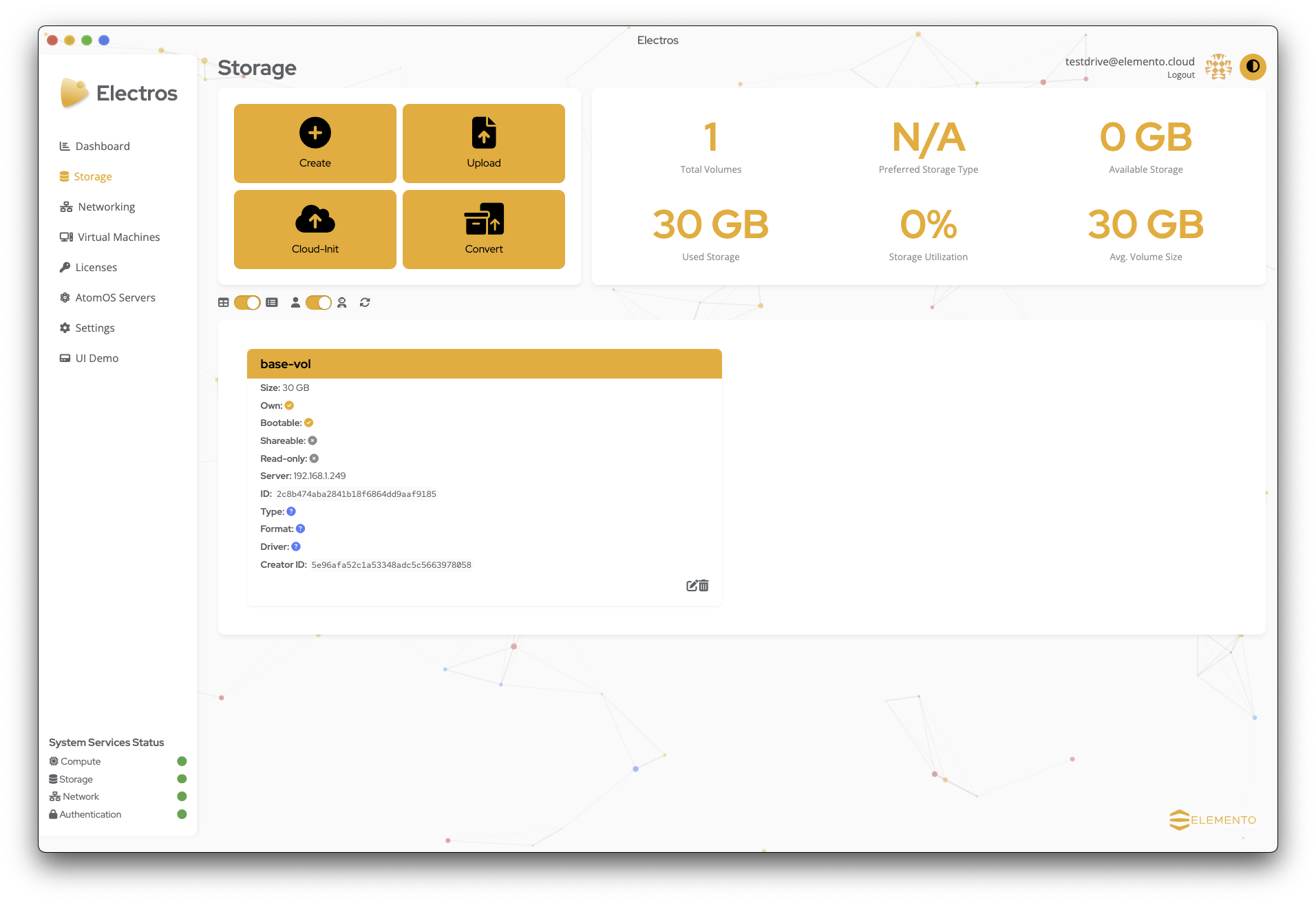

Then after clicking on Create volume you will find a page like this one.

Alt text

Create a virtual machine

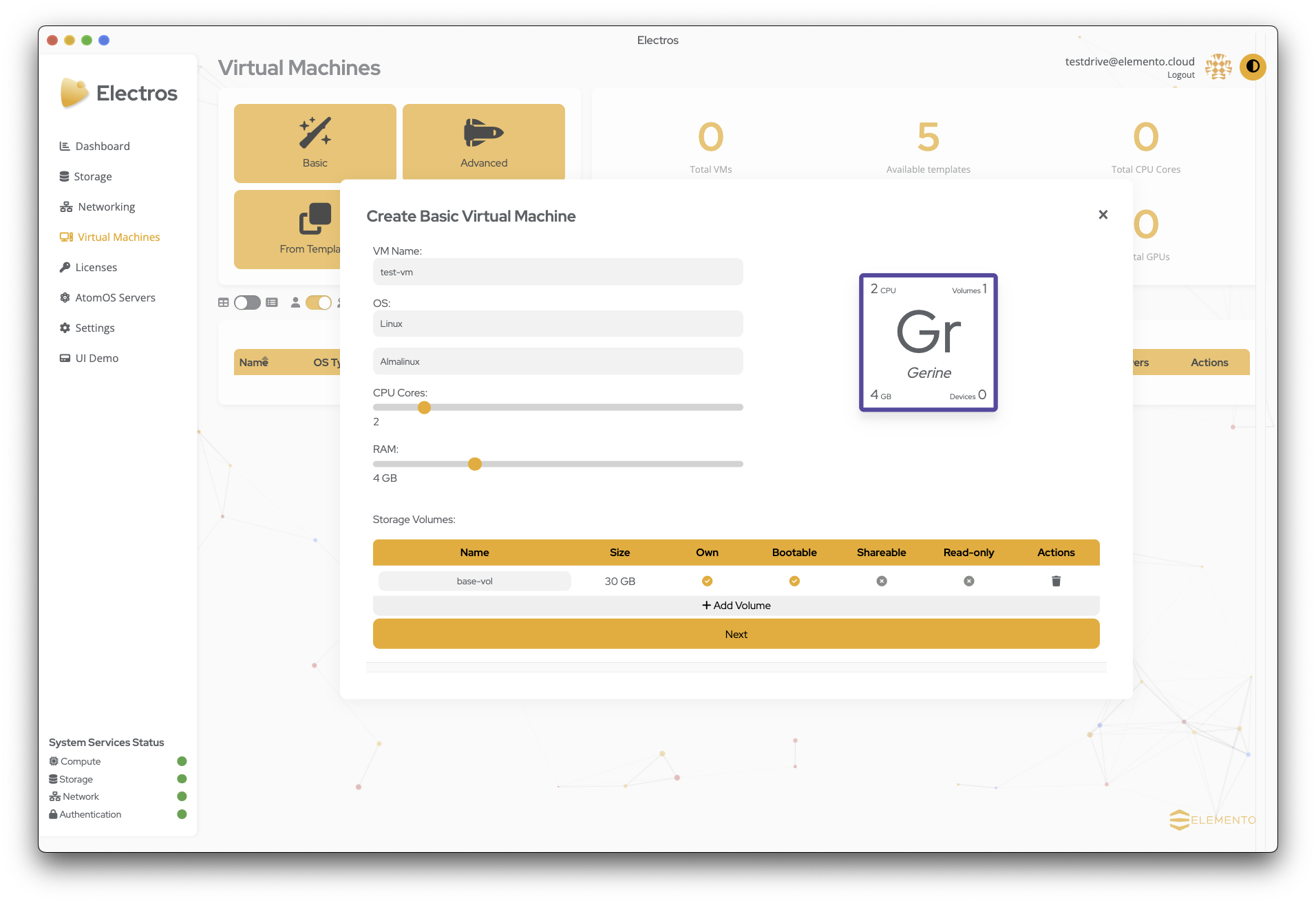

Now that we have a storage we can attach a Virtual Machine to it. The first step is to select the Virtual Machines section on the left, then you should click on Basic button in order to have a page like this one. Alt text

:::warning NOTE: The ISO is currently retrieved from /tmp/, be sure to place it in the folder before creating the Virtual Machine.

Future steps: Will be done automatically. :::

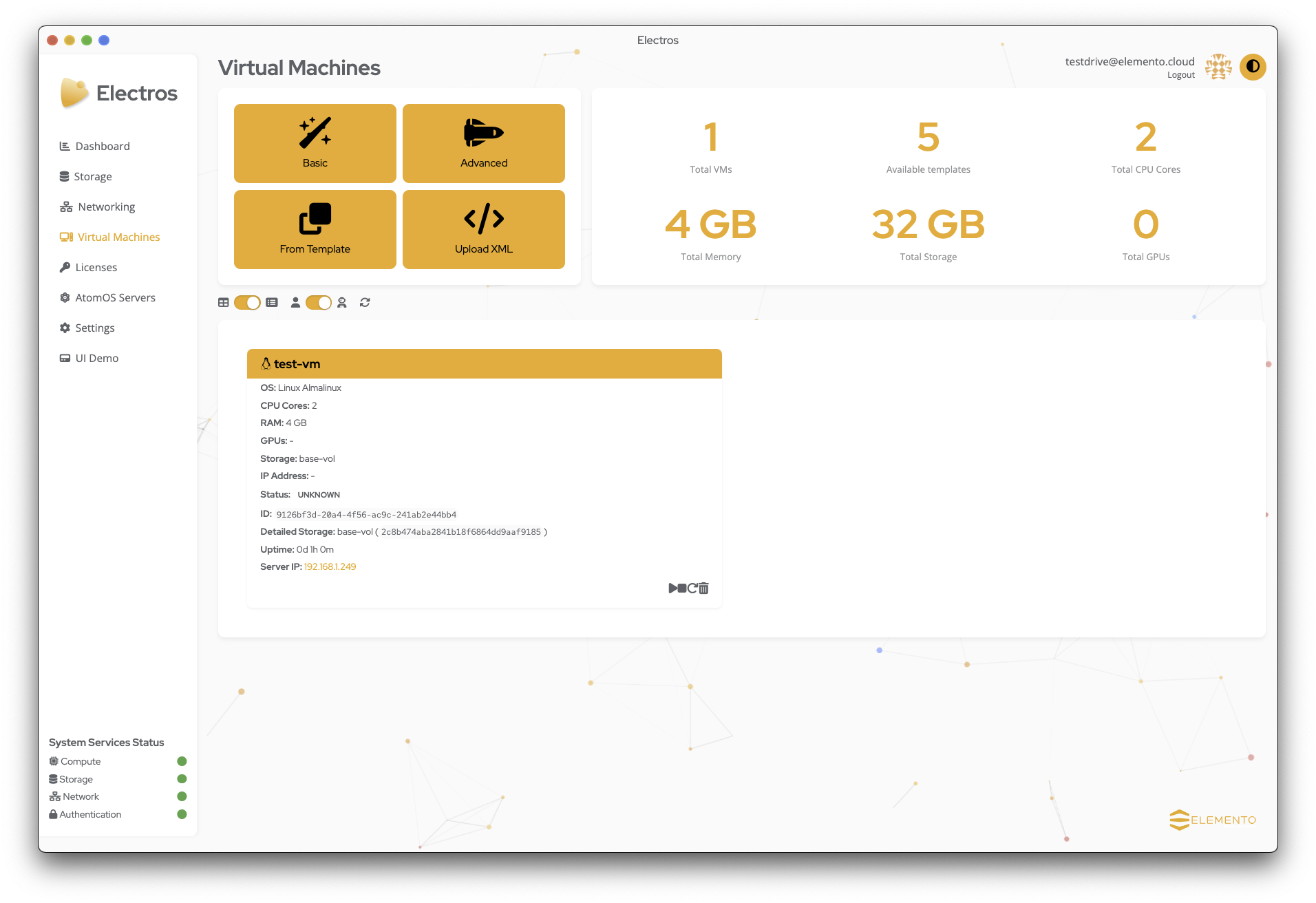

As you can see, the base-vol volume we created earlier is selected. For a more detailed view with additional options, use the Advanced option instead of the basic one!

Alt text



Tech packs

Do you want to have a global overview of our products? Here, you’ll find the answers you’re looking for:

Would you like to dive deeper into our products? Take a look at these documents:
